1968 - 1972 GM Style Reproduction Headlights Adjusters Simple to Install!!! | |
![]() ![]() ![]() |
These headlight adjusters are designed to replace your worn or broken units on your header panel.
They are constructed of ABS-R Plastic, and come with brand new GM style headlight adjustment screws.

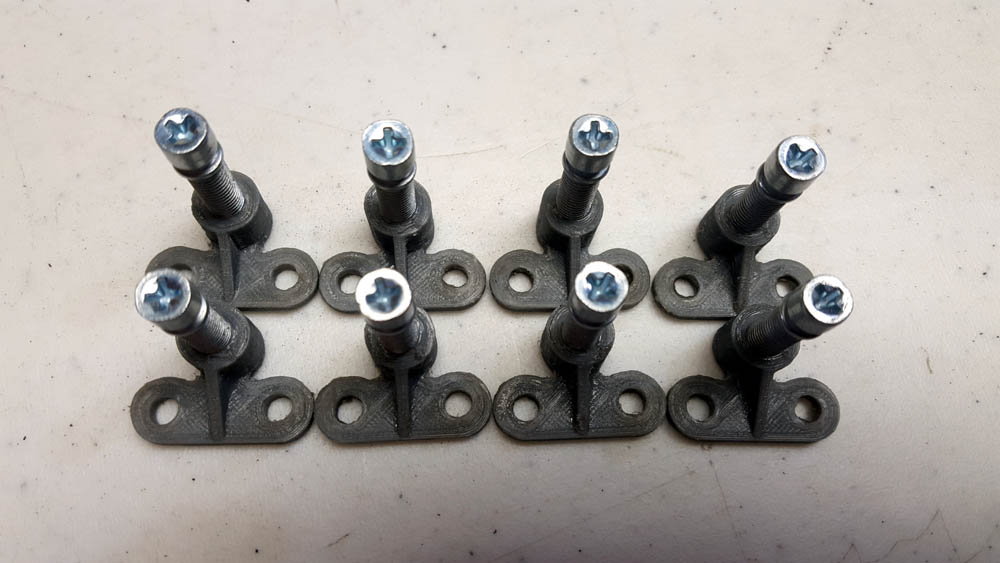

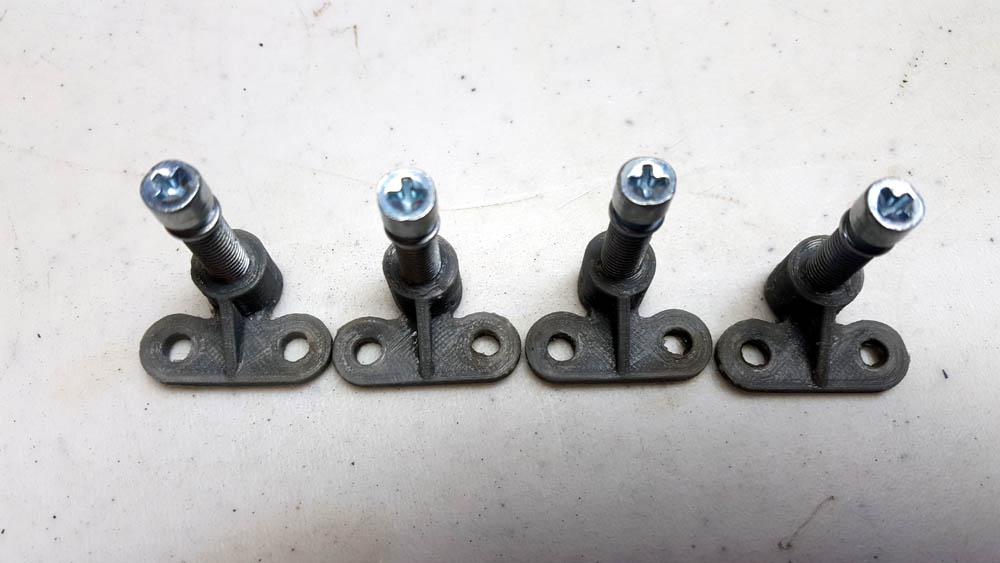

They are sold individually, or in sets of 4 or 8. |
![]() |

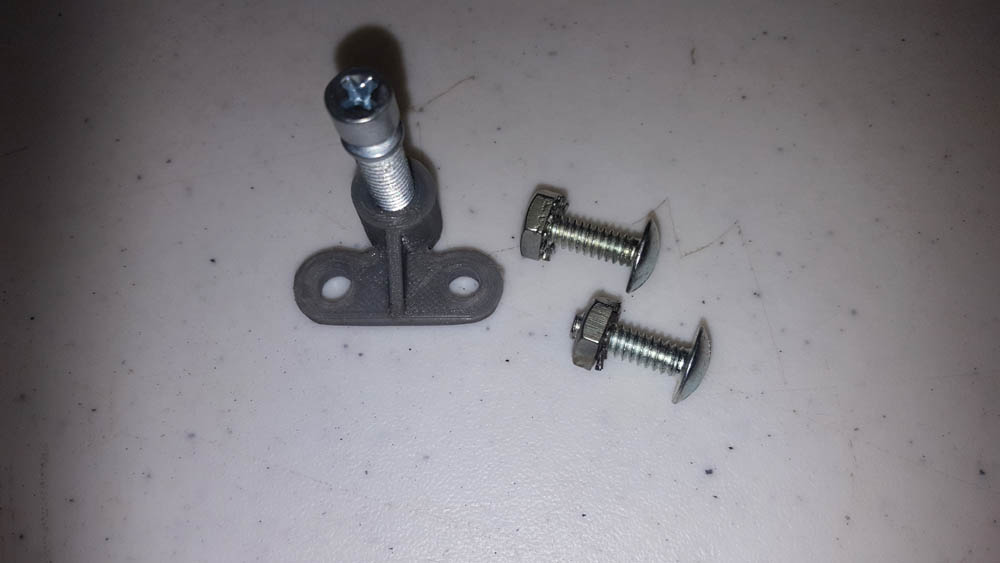

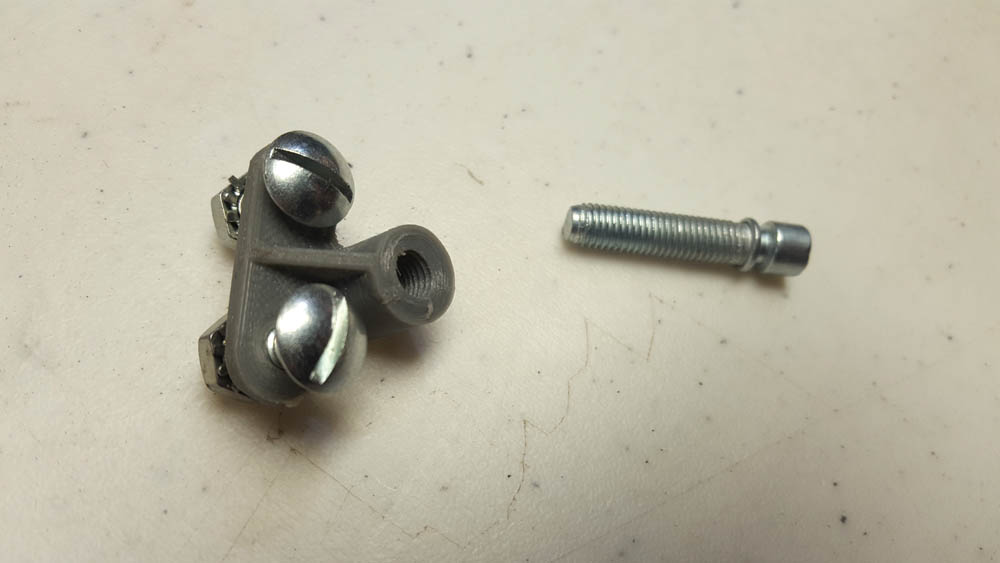

Each one comes complete with 2 screws and nuts to install as a replacement unit on an already installed header panel. They can also be rivited on from the back using your own rivets, as shown below. |
![]() |
Each adjuster is drilled and tapped for the adjustment screw, giving you a very reliable functionality, and strip-free operation... |
![]() |

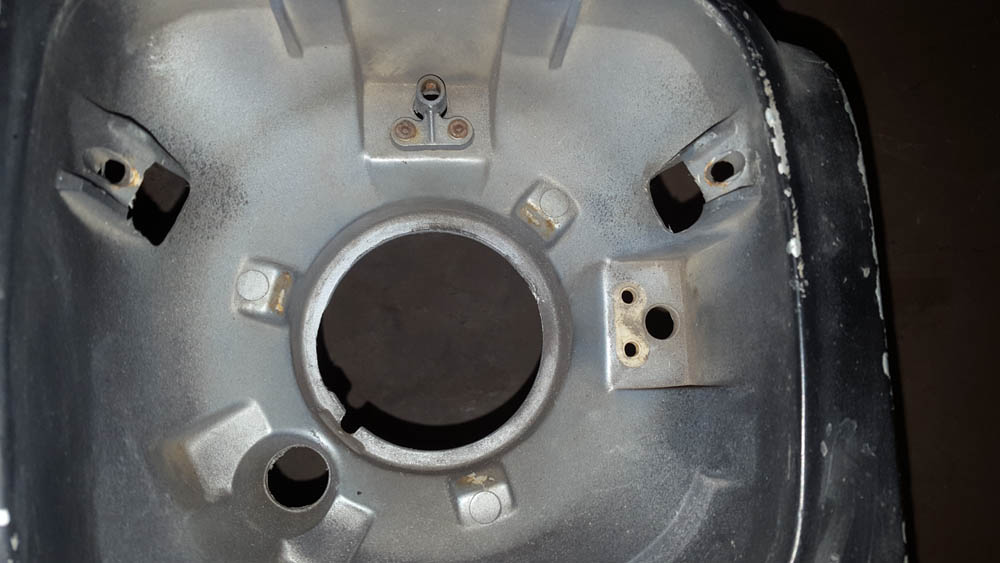

To install using rivets on a header panel that has been removed from vehicle, remove broken unit and make sure surface is flat. |
![]() |

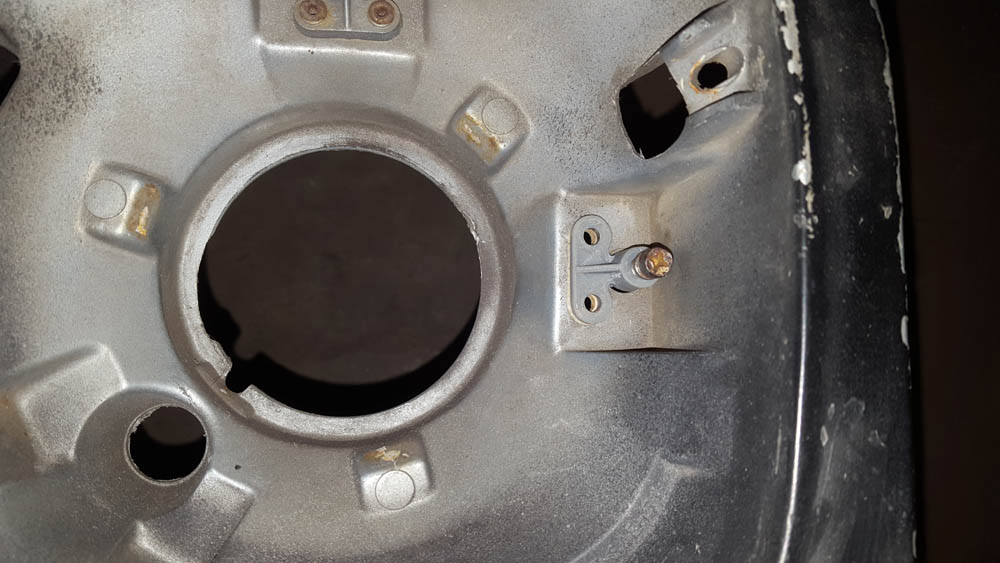

Check that holes line up, adjust if necessary... |
![]() |
Insert rivets from the back side, and hold adjusters in place through headlight opening. |
![]() |

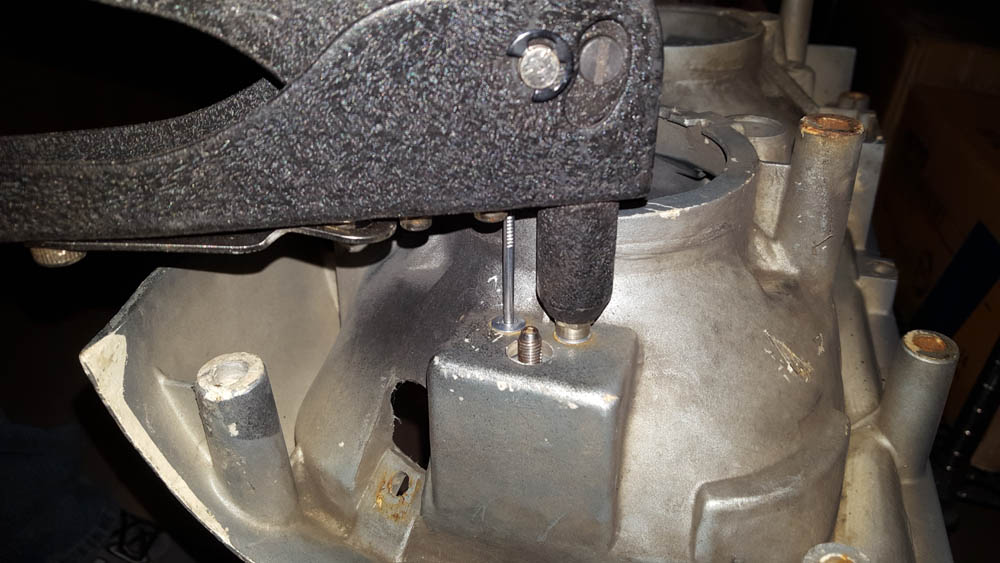

I used aluminum rivets for this example. Again this is done from the back side of the header, as there is more room to work with the rivit gun. |
![]() |

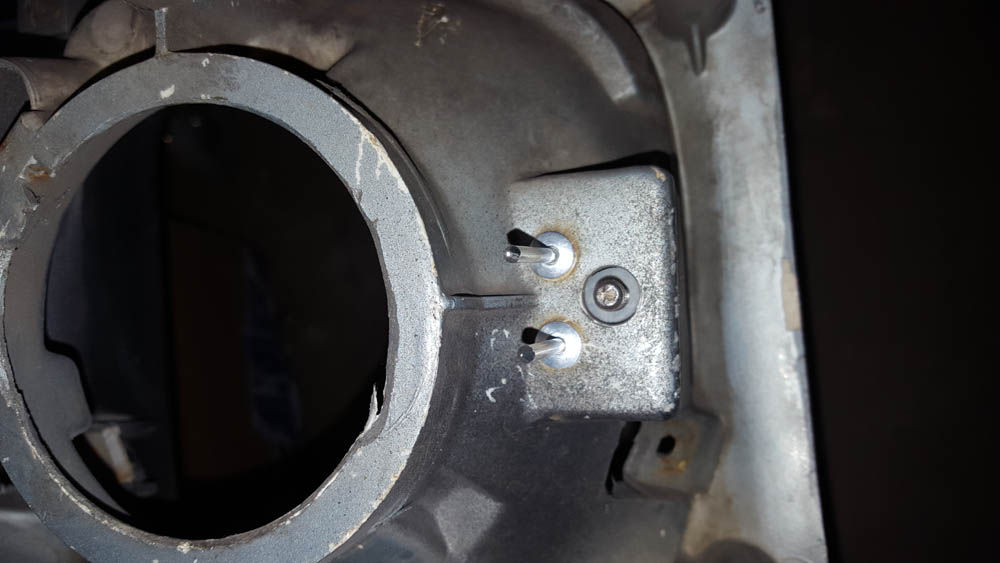

View of back side . |
![]() |

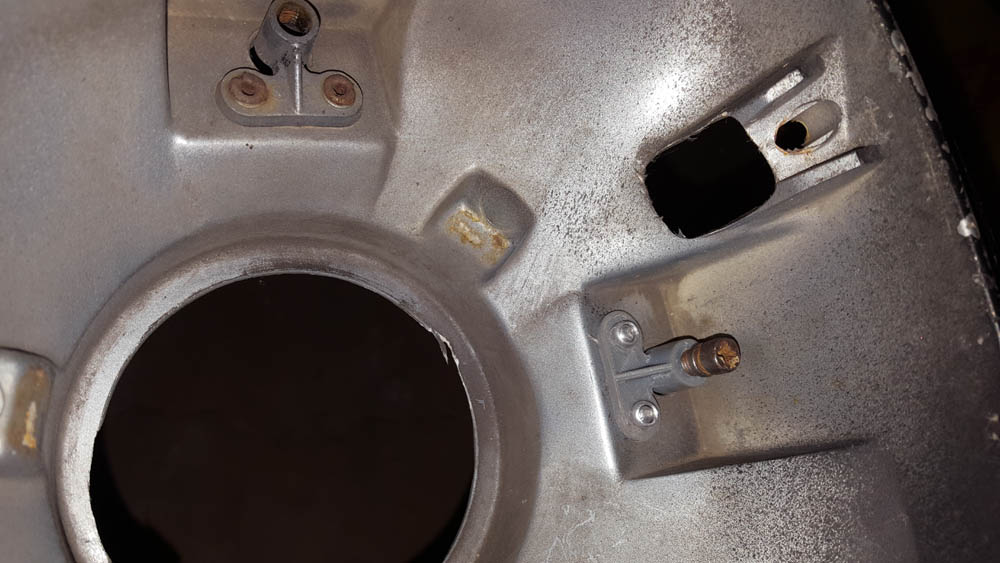

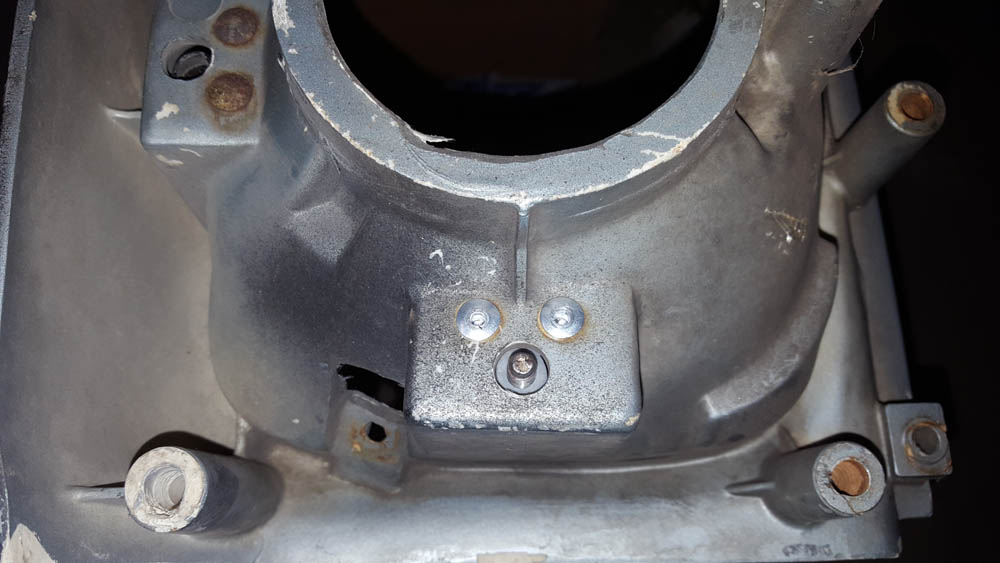

Should look like this from the front... Then re-install your bucket. |
